Description

1.Confirms the  Air cleanliness standard ISO 14644-5 (Class 100)

2.Free Blower ensures noiseless operation.

3.Sound level no more than 60 decibel ± 5%.

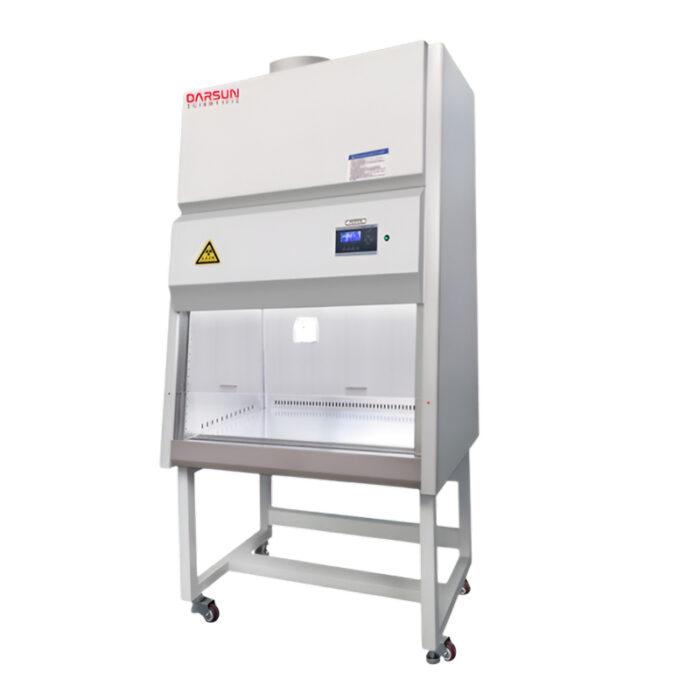

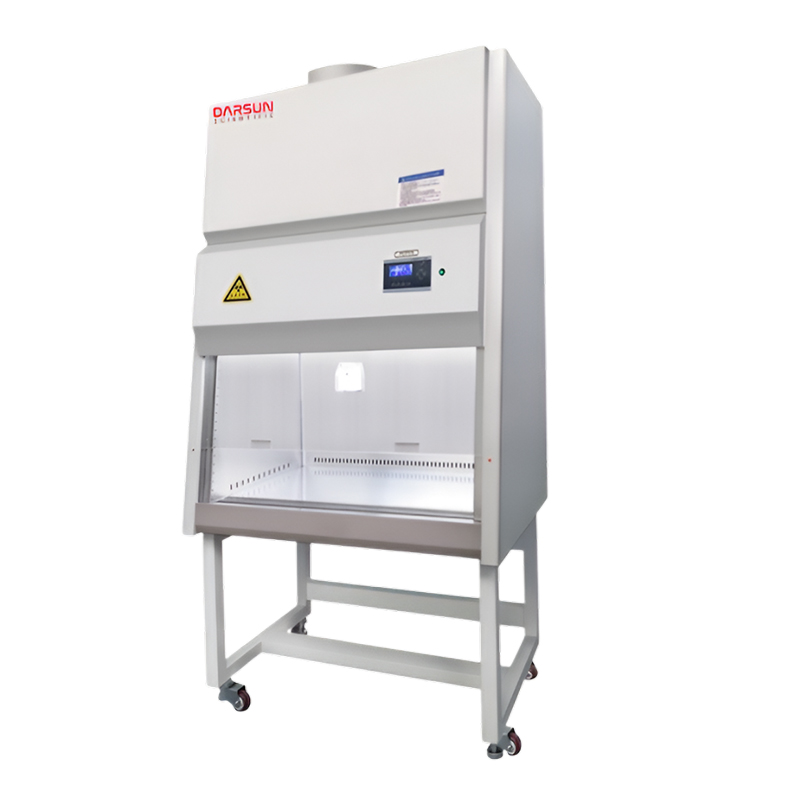

4.Microprocessor controlled, Class II Bio Safety Cabinet (Type B2)

5.All contaminated air paths remains in negative pressure.

6.The exhaust plenum remains under negative pressure & hard ducted to the outside environment.

7.Ergonomically angled supply filter to match cabinet profile for down flow uniformity.

8.Main Supply & Exhaust filter – Mini pleat HEPA filter with particle retention 99.99% for0.3 micron particles.

9.Robust construction outer body made of Electro galvanized steel duly powder coated.

10.Working chamber is made of stainless steel 304.

11.Single piece removable stainless steel 304 perforated working surface.

12.Smooth finish interior and exterior ensures no risk of cuts to the user or maintenance personnel.

13.Stand with lockable castor wheel for easy movement.

14.The front vertical sliding sash made of transparent toughened glass (5-mm thickness) with smooth counter balanced drive.

15.Built in “PHILIPS / OSRAM” U.V. Germicidal light helps in killing of bacteria and other microorganism.

16.Working area is illuminated by bright uniform Fluorescent light (1x40W).

17.Duly dynamically balanced highly efficient centrifugal blower with 0.25 HP Electric Motor Mounted on anti vibration pad 1440rpm motor unit sized to generate adequate air flow volume over the Filter.

18.Height of the working table provides comfortable “SIT DOWN” working position for the operator.

19.Gas tap-one towards the back of the cabinet.

20.Magnehelic gauge for pressure monitoring.

21.2 Nos-15/5A electrical outlets inside the work space.

22.Supplied complete with cord & plug to work on 220-240VAC, 50Hz supply.
